Glossary

If you are a newbie in the TSE in Cloud world, you will most probably feel overwhelmed by the amount of information that you can find in this documentation.

This is why we suggest you get started by learning what we're talking about: we think that you need to get accustomed to the terms used by the TSE in Cloud API as a very first step.

Common Terms List​

Below you can find a list of the main concepts that you need to know:

Url​

It is the URL that you connect to to access the application; it has a structure like

[protocol]://[cid].domain

For example https://csdemo.teamsystem.io

CID​

Customer identification is assigned uniquely to a customer

For example csdemo

APIGateway​

An API gateway is a protection point for accessing APIs, which secures and manages traffic between API consumers and the applications exposing those APIs.

Adopting an API gateway offers several advantages, ensuring:

  • Authentication and authorization;
  • Routing to backends;
  • Rate limiting to prevent system overload and protect against DDoS attacks;
  • SSL/TLS traffic offloading to improve performance and handle errors or exceptions;
  • Tracking and monitoring access to resources.

The TSE APIs intended for integration are exposed downstream of the Teamsystem PaaS API Gateway.

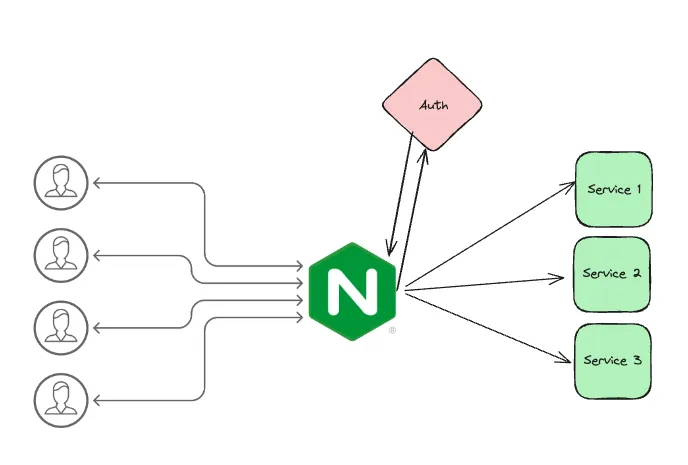

API Gateway

Simplified schema of API Gateway access with Nginx

webapi_base_url​

This is the URL you connect to in order to access the application (interface). It has a structure like:

webapi_base_url: [protocol]://[cid].domain

For example: https://csdemo.teamsystem.io

apigwt_base_url​

This is the URL you connect to in order to access services (RESTful). It has a structure like:

apigwt_base_url:  https://api + [webapi_base_url]/api

For example:

  • https://apicsdemo.teamsystem.io/api/swagger/docs/index.html , to access the Swagger documentation;
  • https://{{apigwt_base_url}}/api/v1/{{scope}}/CO/CustomerSupplierCo/search?company=2 , to access the customer service.

Scope​

Also referred to as [environment] represents the set of data to which you have access; although other configurations are possible in Teamsystem Enterprise Cloud, each installation has access to only one environment.

ResourceName​

It is the REST resource name assigned to the application entity; it is used in the rest call.

For example:

{{webapi_base_url}}/api/v1/{{scope}}/CO/CustomerSupplierCo/search?company=2
